Tank Feet

Hygienic Sanitary XH Series tank feet-image
Hygienic Sanitary XH Series tank feet main image

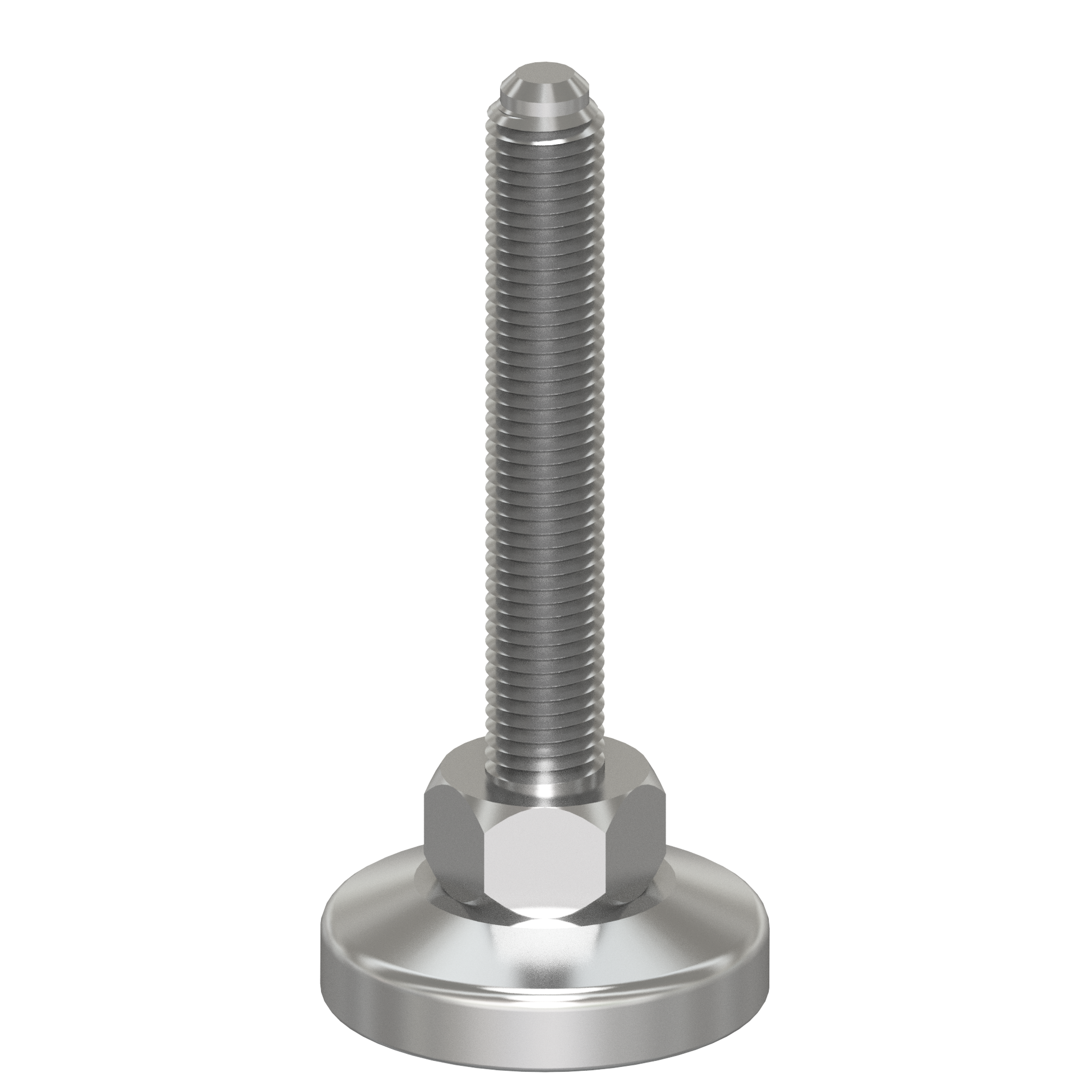

Hygienic Sanitary XH Series tank feet

  • Overview
  • Specs
  • Get In Touch
  • Downloads

CODE: Hygienic sanitary XH series tank feet

The XH machine foot is the first in the world to be certified according to the 3A hygienic standard 88-00 and the EHEDG standard TYPE EL-CLASS 1.

The foot seals all moveable parts 100% hygienically, even if the load on the foot is removed. The XH type is approved for machines and equipment for the food, dairy, brewery and pharmaceutical industry, applications with the strictest requirements for hygiene and cleaning.
Features:
–  Reduces cleaning effort to an absolute minimum
–  The sleeve covers the thread, and also functions as a nut
–  The machine foot accommodates slopes up to 10ᴼ on floors and equipment
– The XH machine foot is marked with the 3A and EHEDG logo
–  The XH machine foot range comprises no less than 64 standard feet

Size:
Door Thickness (mm):
Lid Thickness (mm):
Frame Thickness:
Frame Height:
Maximum Working Pressure (Bar):
Weight (Kg):
No Of Clamps:
CODAP 2000:
ASME:
TUV:
Vacuum Pressure (bar):

More Information On This Product

    Send us a brief message if you need more information or want us to call you back.

    Name (required):

    Email (required):

    Company (required):

    Phone:

    Click the box if you'd like us to call you back:

    Product I'm interested in:

    Message

    Datasheet: Hygienic Sanitary XH series tank feet.pdf
    CAD Drawing:
