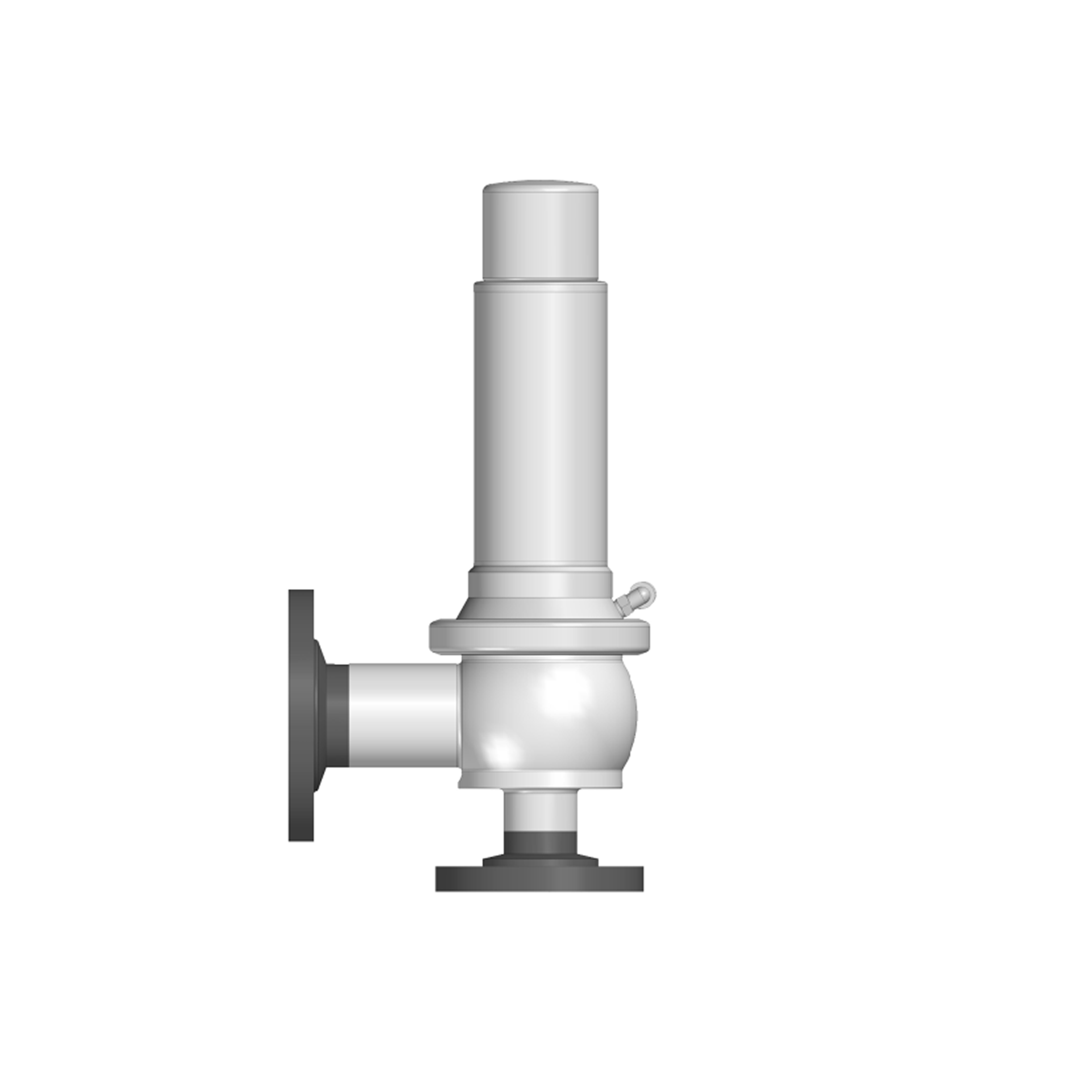

Code: Safety Valve Safety Valve

Technical Details

– TÜV-approvals – for steam, gases and liquids
– Mounting horizontal/vertical
– Seal material EPDM, FDA-compliant
– Set pressure according to specification
– Variants:
  – liftable with a manual lifting device
  – liftable with a pneumatic lifting device
– Option:
  – heater
  – monitoring via proximity switch

Code: Tank Safety and Cleaning Systems

Technical Details: See download document

Customer Benefits:
– Design according to product and process requirements

– Selection according to range
– Compact unit

– Cost saving concept

– Easy assembly and disassembly

CODE: Range Vacuum Valve Technical Details  – Horizontal installation position – connection welded directly to the crosspiece – Vertical installation position- connection directly to the housing – Seal material EPDM compliant with FDA 21 CFR 177.2600 and VMQ – Opening pressure 0.033 psi (2.3 mbar) to 0.061 psi (4.2 mbar) Variants: – not liftable, without drip cup – liftable, with drip cup Options: – heater – monitoring via proximity switch Customer Benefits – Standard connection for welding – Optimal cleaning conditions – No dead space – Outlet defined over drip cup -targeted discharge of fluid – no spraying – Sediments from outside do not get into the tank because of a horizontal installation position – Easy assembly
